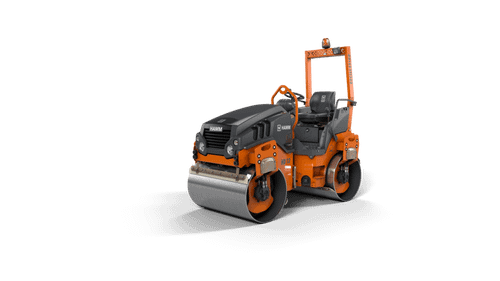

HD 12 VO Tandem Roller with Vibration And Oscillation Drum #HD_12_VO

{"sku":"SKU|HD_12_VO","model":"Model|HD 12 VO","feature_bullet_1":"Feature 1|Simple, intuitive and language-neutral control","feature_bullet_2":"Feature 2|Ergonomic driver platform","feature_bullet_3":"Feature 3|Excellent view of drum edge, machine and construction site environment","feature_bullet_4":"Feature 4|Compaction with oscillation","product_brochure_url":"Product Brochure PDF URL|https://www.wirtgen-group.com/binary/full/o8704v83_HD_12_VO_H230_enUS.pdf","spec_notab_clustered_specs":"Specifications|

Basic data

Series: HD CompactLine
Name: HD 12 VO
Description: Tandem roller with vibrating roller drum and oscillation drum
Exhaust emissions category: EU Stage V / EPA Tier 4
Series: H230

Weights

French classific., data/class: 11,1/PV3
Operating weight, max.: 7,651 lbs
Operating weight with ROPS: 6,075 lbs
Static linear load, front: 62.2 lbs/in

Machine dimensions

Total width: 51.6 in
Total length: 99.6 in
Max. working width: 49.2 in
Wheelbase: 66.9 in
Turning radius, inside: 93.3 in
Total height with ROPS: 97.4 in
Height, loading, min.: 69 in
Curb clearance, rear: 22.4 in
Curb clearance, left: 22.4 in

Drum dimensions

Track offset, right: 2 in
Track offset, left: 0 in
Drum thickness, rear: 0.6 in
Drum thickness, front: 0.6 in
Drum diameter, rear: 28.3 in
Drum diameter, front: 28.3 in
Drum width, rear: 47.2 in
Drum width, front: 47.2 in

Diesel engine

Type: D1703
Number of cylinders: 3
Emission standard: EU Stage V / EPA Tier 4
Exhaust gas after-treatment: -
Power ISO 14396, rpm: 2,200 RPM
Power ISO 14396, HP: 25.2 HP
Power ISO 14396, kW: 18.5 kW
Power SAE J1349, rpm: 2,200 RPM
Power SAE J1349, HP: 24.8 hp
Power SAE J1349, kW: 18.5 kW

Drive

Speed, infinitely variable: 6.3
Climbing ability, without vibration: 40 %
Climbing ability, with vibration: 35

Oscillation

Oscillation force, rear, II: 5,175 lbs
Oscillation force, rear, I: 8,775 lbs
Tangential amplitude, rear, II: 0.045 in
Tangential amplitude, rear, I: 0.045 in
Oscillation frequency, rear, II: 1,740 VPM
Oscillation frequency, rear, I: 2,280 VPM

Vibration

Centrifugal force, front, II: 5,175 lbs
Centrifugal force, front, I: 8,550 lbs
Amplitude, front, II: 0.018 in
Amplitude, front, I: 0.018 in
Vibration frequency, front, II: 3,060 VPM
Vibration frequency, front, I: 3,900 VPM

Steering

Oscillation angle +/-: 8 °

Sprinkler system

Fuel tank, capacity: 11.1 gpm
Water tank, capacity: 47.6 gpm

Tank capacity/Fill capacity

Fuel tank, capacity: 11.1 gpm
Water tank, capacity: 47.6 gpm

Sound level

Acoustic power LW(A), measured: 104 db(A)
Acoustic power LW(A), sticker: 106"}
