Compact dimensions
{"sku":"SKU|HD_12i_VV","model":"Model|HD 12i VV","feature_bullet_1":"Feature 1|Simple transport, simple loading","feature_bullet_2":"Feature 2|Simple, intuitive and language-neutral control","feature_bullet_3":"Feature 3|Ergonomic driver platform","feature_bullet_4":"Feature 4|Excellent view of drum edge, machine and construction site environment","product_brochure_url":"Product Brochure PDF URL|https://www.wirtgen-group.com/binary/full/o8836v83_HD_12i_VV_H251_enUS.pdf","spec_notab_clustered_specs":"Specifications|

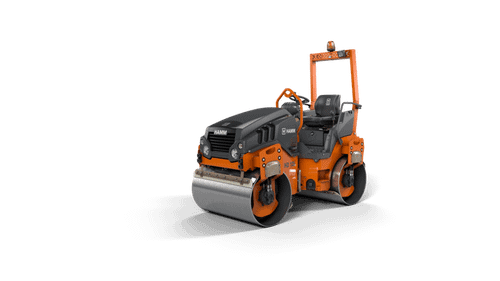

Name: HD 12i VV
Description: Tandem roller with two vibrating roller drums
Exhaust emissions category: EU Stage V / EPA Tier 4
Series: H251
Operating weight, max.: 7,519 lbs
Operating weight with ROPS: 5,942 lbs
Static linear load, front: 62.2 lbs/in
Total length: 99.6 in
Max. working width: 49.2 in
Wheelbase: 66.9 in
Turning radius, inside: 93.3 in
Total height with ROPS: 97.4 in
Height, loading, min.: 69 in
Curb clearance, rear: 22.4 in
Curb clearance, left: 22.4 in
Track offset, left: 0 in
Drum thickness, rear: 0.6 in
Drum thickness, front: 0.6 in
Drum diameter, rear: 28.3 in
Drum diameter, front: 28.3 in
Drum width, rear: 47.2 in
Drum width, front: 47.2 in
Number of cylinders: 3
Emission standard: EU Stage V / EPA Tier 4
Exhaust gas after-treatment: DOC-DPF
Power ISO 14396, rpm: 2,200 RPM
Power ISO 14396, HP: 32.6 HP
Power ISO 14396, kW: 24 kW
Power SAE J1995, rpm: 2,200 RPM
Power SAE J1995, HP: 32.2 hp
Power SAE J1995, kW: 24 kW
Climbing ability, without vibration: 40 %
Climbing ability, with vibration: 30
Centrifugal force, rear, I: 11,025 lbs
Centrifugal force, front, II: 6,750 lbs
Centrifugal force, front, I: 11,025 lbs
Amplitude, front, II: 0.018 in
Amplitude, front, I: 0.018 in
Vibration frequency, rear, II: 3,060 VPM
Vibration frequency, rear, I: 3,900 VPM
Vibration frequency, front, II: 3,060 VPM
Vibration frequency, front, I: 3,900 VPM
Amplitude, rear, II: 0.018 in
Amplitude, rear, I: 0.018 in
Water tank, capacity: 47.6 gpm
Water tank, capacity: 47.6 gpm
Acoustic power LW(A), sticker: 106"}
Basic data
Series: HD CompactLineName: HD 12i VV
Description: Tandem roller with two vibrating roller drums
Exhaust emissions category: EU Stage V / EPA Tier 4
Series: H251
Weights
French classific., data/class: 11,3/PV3Operating weight, max.: 7,519 lbs
Operating weight with ROPS: 5,942 lbs
Static linear load, front: 62.2 lbs/in
Machine dimensions
Total width: 51.6 inTotal length: 99.6 in
Max. working width: 49.2 in
Wheelbase: 66.9 in
Turning radius, inside: 93.3 in
Total height with ROPS: 97.4 in
Height, loading, min.: 69 in
Curb clearance, rear: 22.4 in
Curb clearance, left: 22.4 in
Drum dimensions
Track offset, right: 2 inTrack offset, left: 0 in
Drum thickness, rear: 0.6 in
Drum thickness, front: 0.6 in
Drum diameter, rear: 28.3 in
Drum diameter, front: 28.3 in
Drum width, rear: 47.2 in
Drum width, front: 47.2 in
Diesel engine
Type: D1803-CRNumber of cylinders: 3
Emission standard: EU Stage V / EPA Tier 4
Exhaust gas after-treatment: DOC-DPF
Power ISO 14396, rpm: 2,200 RPM
Power ISO 14396, HP: 32.6 HP
Power ISO 14396, kW: 24 kW
Power SAE J1995, rpm: 2,200 RPM
Power SAE J1995, HP: 32.2 hp
Power SAE J1995, kW: 24 kW
Drive
Speed, infinitely variable: 0,0 - 6,6Climbing ability, without vibration: 40 %
Climbing ability, with vibration: 30
Vibration
Centrifugal force, rear, II: 6,750 lbsCentrifugal force, rear, I: 11,025 lbs
Centrifugal force, front, II: 6,750 lbs
Centrifugal force, front, I: 11,025 lbs
Amplitude, front, II: 0.018 in
Amplitude, front, I: 0.018 in
Vibration frequency, rear, II: 3,060 VPM
Vibration frequency, rear, I: 3,900 VPM
Vibration frequency, front, II: 3,060 VPM
Vibration frequency, front, I: 3,900 VPM
Amplitude, rear, II: 0.018 in
Amplitude, rear, I: 0.018 in
Steering
Oscillation angle +/-: 8 °Sprinkler system
Fuel tank, capacity: 11.1 gpmWater tank, capacity: 47.6 gpm
Tank capacity/Fill capacity
Fuel tank, capacity: 11.1 gpmWater tank, capacity: 47.6 gpm
Sound level
Acoustic power LW(A), measured: 102 db(A)Acoustic power LW(A), sticker: 106"}
