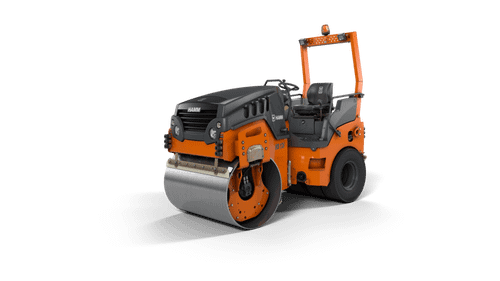

HD 13i VT Tandem Roller with Vibrating Roller Drum And Set Of Wheels #HD_13i_VT

{"sku":"SKU|HD_13i_VT","model":"Model|HD 13i VT","feature_bullet_1":"Feature 1|Ergonomic driver platform","feature_bullet_2":"Feature 2|Compact dimensions","feature_bullet_3":"Feature 3|Simple transport, simple loading","feature_bullet_4":"Feature 4|Simple, intuitive and language-neutral control","product_brochure_url":"Product Brochure PDF URL|https://www.wirtgen-group.com/binary/full/o19696v83_HD_13i_VT_H285_enUS.pdf","spec_notab_clustered_specs":"Specifications|

Basic data

Series: HD CompactLine
Name: HD 13i VT
Description: Tandem roller with vibrating roller drum and set of tires
Exhaust emissions category: EU Stage V / EPA Tier 4
Series: H285

Weights

French classific., data/class: 10,8/VT0
Operating weight, max.: 11,268 lbs
Static linear load, front: 91.3 lbs/in
Operating weight with ROPS: 8,633 lbs
Basic weight no cab, without ROPS: 7,927 lbs
Operating weight with cab: 9,184 lbs
Axle load, rear: 3,958 lbs
Axle load, front: 4,675 lbs

Machine dimensions

Total width: 56.1 in
Total length: 116.7 in
Max. working width: 52.7 in
Total height with cab: 107.1 in
Wheelbase: 76.8 in
Ground clearance, center: 12 in
Turning radius, inside: 105.9 in
Total height with ROPS: 102 in
Height, loading, min.: 71.7 in

Drum dimensions

Size of tires, rear: 10.5/80-16
Drum diameter, front: 35.4 in
Drum width, front: 51.2 in
Drum thickness, front: 0.7 in
Track offset, right: 2 in
Track offset, left: 0 in

Wheel dimensions

Number of tires, rear: 4
Size of tires, rear: 10.5/80-16
Width over tires, rear: 50.2 in

Diesel engine

Type: V2403-CR
Number of cylinders: 4
Emission standard: EU Stage V / EPA Tier 4
Exhaust gas after-treatment: DOC-DPF
Power ISO 14396, rpm: 2,700 RPM
Power ISO 14396, HP: 50.9 HP
Power ISO 14396, kW: 37.4 kW
Power SAE J1995, rpm: 2,700 RPM
Power SAE J1995, HP: 50.1 hp
Power SAE J1995, kW: 37.4 kW

Drive

Speed, infinitely variable: 0,0 - 6,8
Climbing ability, without vibration: 40 %
Climbing ability, with vibration: 30

Vibration

Centrifugal force, front, II: 8,775 lbs
Centrifugal force, front, I: 14,400 lbs
Amplitude, front, II: 0.012 in
Amplitude, front, I: 0.02 in
Vibration frequency, front, II: 3,060 VPM
Vibration frequency, front, I: 3,600 VPM

Steering

Oscillation angle +/-: 8 °

Sprinkler system

Fuel tank, capacity: 19.3 gpm
Water tank, capacity: 75.3 gpm
Additive tank, capacity: 4.8 gpm

Tank capacity/Fill capacity

Fuel tank, capacity: 19.3 gpm
Water tank, capacity: 75.3 gpm
Additive tank, capacity: 4.8 gpm

Sound level

Acoustic power LW(A), measured: 102 db(A)
Acoustic power LW(A), sticker: 104"}
