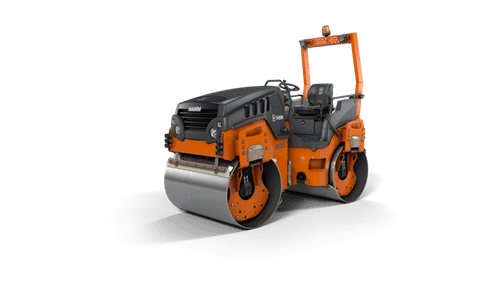

HD 13i VV Tandem Roller with Two Vibrating Roller Drums #HD_13i_VV

{"sku":"SKU|HD_13i_VV","model":"Model|HD 13i VV","feature_bullet_1":"Feature 1|Compact dimensions","feature_bullet_2":"Feature 2|Excellent view of drum edge, machine and construction site environment","feature_bullet_3":"Feature 3|Ergonomic driver platform","feature_bullet_4":"Feature 4|Simple, intuitive and language-neutral control","product_brochure_url":"Product Brochure PDF URL|https://www.wirtgen-group.com/binary/full/o19666v83_HD_13i_VV_H285_enUS.pdf","spec_notab_clustered_specs":"Specifications|

Basic data

Series: HD CompactLine
Name: HD 13i VV
Description: Tandem roller with two vibrating roller drums
Exhaust emissions category: EU Stage V / EPA Tier 4
Series: H285

Weights

French classific., data/class: 11,1/VT0
Operating weight, max.: 11,819 lbs
Operating weight with ROPS: 9,184 lbs
Basic weight no cab, without ROPS: 8,478 lbs
Operating weight with cab: 9,735 lbs
Static linear load, front: 91.3 lbs/in
Axle load, rear: 4,509 lbs
Axle load, front: 4,675 lbs

Machine dimensions

Total width: 56.1 in
Total length: 116.7 in
Max. working width: 53.1 in
Total height with cab: 107.1 in
Wheelbase: 76.8 in
Ground clearance, center: 12 in
Turning radius, inside: 105.9 in
Total height with ROPS: 102 in
Height, loading, min.: 71.7 in

Drum dimensions

Track offset, right: 2 in
Track offset, left: 0 in
Drum thickness, rear: 0.7 in
Drum thickness, front: 0.7 in
Drum diameter, rear: 35.4 in
Drum diameter, front: 35.4 in
Drum width, rear: 51.2 in
Drum width, front: 51.2 in

Diesel engine

Type: V2403-CR
Number of cylinders: 4
Emission standard: EU Stage V / EPA Tier 4
Exhaust gas after-treatment: DOC-DPF
Power ISO 14396, rpm: 2,700 RPM
Power ISO 14396, HP: 50.9 HP
Power ISO 14396, kW: 37.4 kW
Power SAE J1995, rpm: 2,700 RPM
Power SAE J1995, HP: 50.1 hp
Power SAE J1995, kW: 37.4 kW

Drive

Speed, infinitely variable: 0,0 - 6,8
Climbing ability, without vibration: 40 %
Climbing ability, with vibration: 30

Vibration

Centrifugal force, rear, II: 8,775 lbs
Centrifugal force, rear, I: 14,400 lbs
Centrifugal force, front, II: 8,775 lbs
Centrifugal force, front, I: 14,400 lbs
Amplitude, front, II: 0.012 in
Amplitude, front, I: 0.02 in
Vibration frequency, rear, II: 3,060 VPM
Vibration frequency, rear, I: 3,600 VPM
Vibration frequency, front, II: 3,060 VPM
Vibration frequency, front, I: 3,600 VPM
Amplitude, rear, II: 0.012 in
Amplitude, rear, I: 0.02 in

Steering

Oscillation angle +/-: 8 °

Sprinkler system

Fuel tank, capacity: 19.3 gpm
Water tank, capacity: 75.3 gpm

Tank capacity/Fill capacity

Fuel tank, capacity: 19.3 gpm
Water tank, capacity: 75.3 gpm

Sound level

Acoustic power LW(A), measured: 102 db(A)
Acoustic power LW(A), sticker: 104"}
