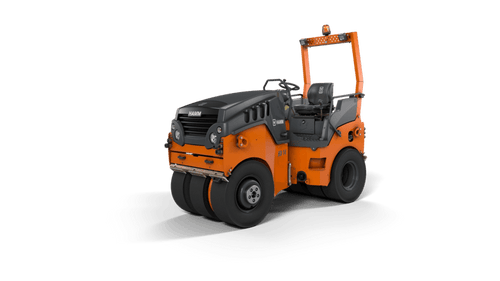

HD 14i TT Tandem Roller with Two Sets Of Wheels #HD_14i_TT

{"sku":"SKU|HD_14i_TT","model":"Model|HD 14i TT","feature_bullet_1":"Feature 1|Excellent view of tires, machine and construction site","feature_bullet_2":"Feature 2|Compact dimensions","feature_bullet_3":"Feature 3|Simple, intuitive and language-neutral control","feature_bullet_4":"Feature 4|Ergonomic driver platform","product_brochure_url":"Product Brochure PDF URL|https://www.wirtgen-group.com/binary/full/o19421v83_HD_14i_TT_H264_enUS.pdf","spec_notab_clustered_specs":"Specifications|

Basic data

Series: HD CompactLine
Name: HD 14i TT
Description: Tandem roller with two sets of tires
Exhaust emissions category: EU Stage V / EPA Tier 4
Series: H264

Weights

French classific., data/class: 5,6/PLO
Operating weight, max.: 9,702 lbs
Operating weight with ROPS: 7,817 lbs
Basic weight no cab, without ROPS: 7,067 lbs
Operating weight with cab: 8,478 lbs
Axle load, rear: 4,112 lbs
Axle load, front: 3,704 lbs
Wheel load per tire, rear: 1,028 lbs
Wheel load per tire, front: 1,235 lbs

Machine dimensions

Total width: 51 in
Total length: 116.7 in
Max. working width: 50.2 in
Total height with cab: 107.1 in
Wheelbase: 76.8 in
Ground clearance, center: 12 in
Turning radius, inside: 102.4 in
Total height with ROPS: 102 in
Height, loading, min.: 71.7 in

Wheel dimensions

Number of tires, rear: 4
Number of tires, front: 3
Tire size, rear: 80-16
Tire size, front: 10.5
Width over tires, rear: 50.2 in
Width over tires, front: 44.4 in

Diesel engine

Type: V2403-CR
Number of cylinders: 4
Emission standard: EU Stage V / EPA Tier 4
Exhaust gas after-treatment: DOC-DPF
Power ISO 14396, rpm: 2,700 RPM
Power ISO 14396, HP: 50.9 HP
Power ISO 14396, kW: 37.4 kW
Power SAE J1995, rpm: 2,700 RPM
Power SAE J1995, HP: 50.1 hp
Power SAE J1995, kW: 37.4 kW

Drive

Climbing ability: 40 %
Speed, infinitely variable: 0,0-6,2

Steering

Oscillation angle +/-: 8 °

Sprinkler system

Fuel tank, capacity: 19.3 gpm
Water tank, capacity: 68.7 gpm
Additive tank, capacity: 4.8 gpm

Tank capacity/Fill capacity

Fuel tank, capacity: 19.3 gpm
Water tank, capacity: 68.7 gpm
Additive tank, capacity: 4.8 gpm

Sound level

Acoustic power LW(A), measured: 100 db(A)
Acoustic power LW(A), sticker: 101"}
