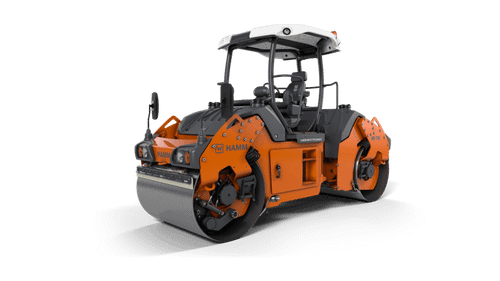

HD+ 70i VV Tandem Roller with Two Vibrating Roller Drums #HD_70i_VV

{"sku":"SKU|HD_70i_VV","model":"Model|HD+ 70i VV","feature_bullet_1":"Feature 1|Track offset for comfortable starting and driving away and compacting at curbsides","feature_bullet_2":"Feature 2|3-point articulation for even weight distribution and excellent directional stability","feature_bullet_3":"Feature 3|Simple, intuitive and language-neutral control","feature_bullet_4":"Feature 4|Excellent view of machine and construction site","product_brochure_url":"Product Brochure PDF URL|https://www.wirtgen-group.com/binary/full/o8731v83_HD_70i_VV_H186_enUS.pdf","spec_notab_clustered_specs":"Specifications|

Basic data

Series: HD+
Name: HD+ 70i VV
Description: Tandem roller with two vibrating roller drums
Exhaust emissions category: EU Stage IIIB/EPA Tier 4
Series: H186

Weights

French classific., data/class: 19,8/VT1
Operating weight, max.: 21,609 lbs
Operating weight with ROPS: 15,832 lbs
Operating weight with cab: 16,207 lbs
Static linear load, front: 140 lbs/in

Machine dimensions

Total length: 176.4 in
Total width with cab: 70.5 in
Max. working width: 64.4 in
Total height with cab: 113.8 in
Wheelbase: 131.5 in
Turning radius, inside: 166.5 in
Height, loading, min.: 81.9 in
Curb clearance, rear: 29.5 in
Curb clearance, left: 29.5 in

Drum dimensions

Track offset, left: 5.3 in
Drum thickness, rear: 0.7 in
Drum thickness, front: 0.7 in
Drum diameter, rear: 44.9 in
Drum diameter, front: 44.9 in
Drum width, rear: 59.1 in
Drum width, front: 59.1 in

Diesel engine

Type: TCD 2.9 L4
Number of cylinders: 4
Emission standard: EU Stage IIIB/EPA Tier 4
Exhaust gas after-treatment: DOC
Power ISO 14396, rpm: 2,500 RPM
Power ISO 14396, HP: 75.3 HP
Power ISO 14396, kW: 55.4 kW
Power SAE J1349, rpm: 2,500 RPM
Power SAE J1349, HP: 74.2 hp
Power SAE J1349, kW: 55.4 kW

Drive

Speed, transportation gear: 0,0-7,5
Climbing ability, without vibration: 40 %
Climbing ability, with vibration: 35
Speed, working gear, I: 0,0-3,7

Vibration

Centrifugal force, rear, II: 15,525 lbs
Centrifugal force, rear, I: 18,900 lbs
Centrifugal force, front, II: 15,525 lbs
Centrifugal force, front, I: 18,900 lbs
Amplitude, front, II: 0.014 in
Amplitude, front, I: 0.025 in
Vibration frequency, rear, II: 3,480 VPM
Vibration frequency, rear, I: 2,880 VPM
Vibration frequency, front, II: 3,480 VPM
Vibration frequency, front, I: 2,880 VPM
Amplitude, rear, II: 0.014 in
Amplitude, rear, I: 0.025 in

Steering

Oscillation angle +/-: 10 °

Sprinkler system

Fuel tank, capacity: 31.7 gpm
Water tank, capacity: 184.9 gpm

Tank capacity/Fill capacity

Fuel tank, capacity: 31.7 gpm
Water tank, capacity: 184.9 gpm

Sound level

Acoustic power LW(A), measured: 105 db(A)
Acoustic power LW(A), sticker: 106"}
