Hydraulic hybrid drive
{"sku":"SKU|HD_90i_PH_VT","model":"Model|HD+ 90i PH VT","feature_bullet_1":"Feature 1|Excellent view of machine and construction site","feature_bullet_2":"Feature 2|Electronic machine management Hammtronic","feature_bullet_3":"Feature 3|3-point articulation for even weight distribution and excellent directional stability","feature_bullet_4":"Feature 4|Operating concept Easy Drive","product_brochure_url":"Product Brochure PDF URL|https://www.wirtgen-group.com/binary/full/o8852v83_HD_90i_PH_VT_H276_enUS.pdf","spec_notab_clustered_specs":"Specifications|
Name: HD+ 90i PH VT

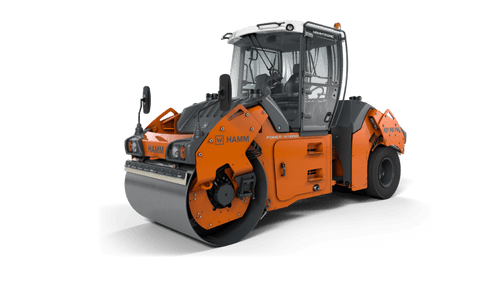

Description: Tandem roller with vibrating roller drum and set of tires
Exhaust emissions category: EU Stage V / EPA Tier 4
Series: H276
Operating weight, max.: 24,872 lbs
Static linear load, front: 155.7 lbs/in
Operating weight with ROPS: 18,853 lbs
Operating weight with cab: 19,228 lbs
Total width with cab: 70.9 in
Max. working width: 71.7 in
Total height with cab: 118.5 in
Wheelbase: 141.7 in
Turning radius, inside: 232.3 in
Height, loading, min.: 87.6 in
Curb clearance, rear: 31.5 in
Curb clearance, left: 31.5 in
Drum diameter, front: 47.2 in
Drum width, front: 66.1 in
Drum thickness, front: 0.7 in
Track offset, left: 6.7 in
Size of tires, rear: 11.00-20
Width over tires, rear: 63.8 in
Emission standard: EU Stage V / EPA Tier 4
Exhaust gas after-treatment: DOC-DPF
Power ISO 14396, rpm: 2,300 RPM
Power ISO 14396, HP: 75.3 HP
Power ISO 14396, kW: 55.4 kW
Power SAE J1349, rpm: 2,300 RPM
Power SAE J1349, HP: 74.2 hp
Power SAE J1349, kW: 55.4 kW
Climbing ability, with vibration: -
Speed, working gear, I: 0,0-3,7
Centrifugal force, front, I: 16,875 lbs
Amplitude, front, II: 0.013 in
Amplitude, front, I: 0.024 in
Vibration frequency, front, II: 3,000 VPM
Vibration frequency, front, I: 2,520 VPM
Water tank, capacity: 200.8 gpm
Additive tank, capacity: 5.8 gpm
Water tank, capacity: 200.8 gpm
Additive tank, capacity: 5.8 gpm
Acoustic power LW(A), sticker: 106"}
Basic data
Series: HD+Name: HD+ 90i PH VT
Description: Tandem roller with vibrating roller drum and set of tires
Exhaust emissions category: EU Stage V / EPA Tier 4
Series: H276
Weights
French classific., data/class: 21,9.10,1/VX1.PLOOperating weight, max.: 24,872 lbs
Static linear load, front: 155.7 lbs/in
Operating weight with ROPS: 18,853 lbs
Operating weight with cab: 19,228 lbs
Machine dimensions
Total length: 189 inTotal width with cab: 70.9 in
Max. working width: 71.7 in
Total height with cab: 118.5 in
Wheelbase: 141.7 in
Turning radius, inside: 232.3 in
Height, loading, min.: 87.6 in
Curb clearance, rear: 31.5 in
Curb clearance, left: 31.5 in
Drum dimensions
Size of tires, rear: 11.00-20Drum diameter, front: 47.2 in
Drum width, front: 66.1 in
Drum thickness, front: 0.7 in
Track offset, left: 6.7 in
Wheel dimensions
Number of tires, rear: 4Size of tires, rear: 11.00-20
Width over tires, rear: 63.8 in
Diesel engine
Type: TCD 2.9 L4Emission standard: EU Stage V / EPA Tier 4
Exhaust gas after-treatment: DOC-DPF
Power ISO 14396, rpm: 2,300 RPM
Power ISO 14396, HP: 75.3 HP
Power ISO 14396, kW: 55.4 kW
Power SAE J1349, rpm: 2,300 RPM
Power SAE J1349, HP: 74.2 hp
Power SAE J1349, kW: 55.4 kW
Drive
Speed, transportation gear: 0,0-7,5Climbing ability, with vibration: -
Speed, working gear, I: 0,0-3,7
Vibration
Centrifugal force, front, II: 13,500 lbsCentrifugal force, front, I: 16,875 lbs
Amplitude, front, II: 0.013 in
Amplitude, front, I: 0.024 in
Vibration frequency, front, II: 3,000 VPM
Vibration frequency, front, I: 2,520 VPM
Steering
Oscillation angle +/-: 10 °Sprinkler system
Fuel tank, capacity: 45.7 gpmWater tank, capacity: 200.8 gpm
Additive tank, capacity: 5.8 gpm
Tank capacity/Fill capacity
Fuel tank, capacity: 45.7 gpmWater tank, capacity: 200.8 gpm
Additive tank, capacity: 5.8 gpm
Sound level
Acoustic power LW(A), measured: 103 db(A)Acoustic power LW(A), sticker: 106"}
