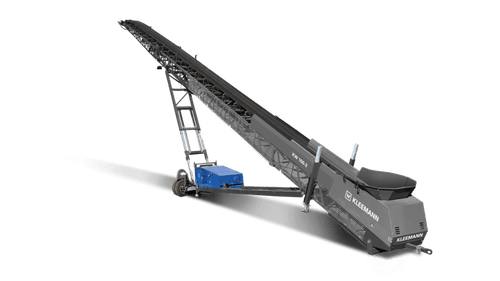

The high flexibility and mobility of the KW 100-2 guarantees that tipping onto stockpiles or the material transfer from mobile crushing and screening plants takes places as quickly and efficiently as possible
{"sku":"SKU|KW_100-2","model":"Model|KW 100-2","feature_bullet_1":"Feature 1|Possible omission of the use of wheel loaders and prevention of multiple material movement","feature_bullet_2":"Feature 2|Short setup times","feature_bullet_3":"Feature 3|Hydraulically adjustable feed height for reducing the impact effect during material transfer from upstream crushing and screening plants","feature_bullet_4":"Feature 4|Hydraulically foldable conveyor belt head part","feature_bullet_5":"Feature 5|Hydraulically adjustable discharge height","spec_notab_clustered_specs":"Specifications|
Hopper volume: 1.3 yd³
Hydraulic motor (Danfoss): 49 in³
Troughing angle: 35 °
Transport width: 124 in
Transport length: 73 ft x 4 in
Transport height max.: 12 ft x 8 in
Weight with standard equipment: 29,100 lbs
Drive output (Tier 4/ Stage IV): 74 hp
Diesel tank capacity: 73 Imp.gal"}
Feeding unit
Feed capacity up to approx.: 490 US t/hrHopper volume: 1.3 yd³
Conveyor belt
Stockpile volume: 3,392 yd³Hydraulic motor (Danfoss): 49 in³
Troughing angle: 35 °
Size and weight
Height x height: 43 ft x 4 inTransport width: 124 in
Transport length: 73 ft x 4 in
Transport height max.: 12 ft x 8 in
Weight with standard equipment: 29,100 lbs
Power supply unit
Drive concept: Diesel-hydraulicDrive output (Tier 4/ Stage IV): 74 hp
Diesel tank capacity: 73 Imp.gal"}
