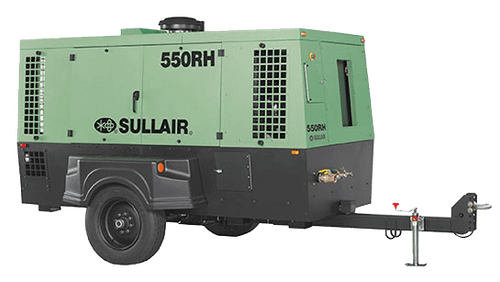

The Sullair 550RH Single Axle rotary screw portable air compressors delivers 550 cfm. Unit is designed for reliability and total accessibility. Powered a choice of a Caterpillar or John Deere engine. Mounting option is 2-wheel, single axle or less running gear. The compressors features a pneumatic inlet valve and 0 to 100% capacity control.
{"sku":"SKU|550rh_sullair","model":"Model|550RH","feature_bullet_1":"Feature 1|Flow: 550 cfm, 15.6 cubic meters per minute","feature_bullet_2":"Feature 2|Pressure: 250 psi, 17.2 bar","feature_bullet_3":"Feature 3|Power: 275 hp, 205 kW","feature_bullet_4":"Feature 4|Rotary screw compressor","feature_bullet_5":"Feature 5|Removable modular canopy","product_brochure_url":"Product Brochure PDF URL|https://america.sullair.com/sites/default/files/2018-06/LIT%20Sullair%20550RH%20-%20750H%20Brochure_PAP550RH750H201802-2_EN.pdf","spec_notab_clustered_specs":"Specifications|Model Specifications
550RH (T2)
550RH (T3)
ACTUAL DELIVERY - cfm
550 (16.6)
550 (16.6)
RATED PRESSURE - psig (bar)
250 (17.2)
250 (17.2)
PRESSURE RANGE, MIN - psig (bar)
80 (5.5)
80 (5.5)
PRESSURE RANGE, MAX - psig (bar)
250 (17.2)
250 (17.2)
ENGINE MAKE & MODEL
JD6068 (T2)
CAT C7 (T3)
AVAILABLE POWER - bhp (kW)
275 (205)
275 (205)
FUEL TANK CAPACITY -gal (l)
112 (424)
112 (424)
FUEL CONSUMPTION 100% LOAD - gph (l/h)
13.5 (51.1)
14.1 (53.4)"}
