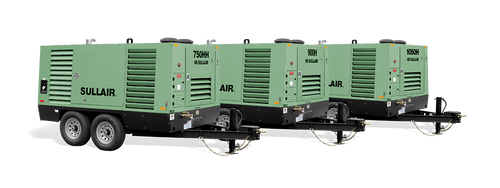

900 Series Tier 3 Portable Air Compressors #900_series_sullair

{"sku":"SKU|900_series_sullair","model":"Model|900 Series","feature_bullet_1":"Feature 1|Flow: 750 - 1050 cfm, 21.2 - 29.7 cubic meters per minute","feature_bullet_2":"Feature 2|Pressure: 125 - 175 psi, 8.2 - 12.1 bar bar","feature_bullet_3":"Feature 3|Power: 300 hp, 224 kW","feature_bullet_4":"Feature 4|Legendary Sullair Air End","feature_bullet_5":"Feature 5|Galvanneal sheet metal with durable powder coat finish","product_brochure_url":"Product Brochure PDF URL|https://america.sullair.com/sites/default/files/2019-09/LIT_Sullair_900%20T3%20Flyer_%20PAP900Series201907-1_EN.pdf","spec_notab_clustered_specs":"Specifications|

PERFORMANCE

750

Actual Delivery cfm (cubic meters per minute): 750 (21.2)
Rated Pressure psi (bar): 100 (7)
Pressure Range min/max psi (bar): 80/125 (5.5/8.2)
Sound Level dB(A): 76

750H

Actual Delivery cfm (cubic meters per minute): 750 (21.2)
Rated Pressure psi (bar): 150 (10.3)
Pressure Range min/max psi (bar): 80/150 (5.5/10.3)
Sound Level dB(A): 76

750HH

Actual Delivery cfm (cubic meters per minute): 750 (21.2)
Rated Pressure psi (bar): 175 (12.1)
Pressure Range min/max psi (bar): 80/175 (5.5/12.1)
Sound Level dB(A): 76

825

Actual Delivery cfm (cubic meters per minute): 825 (23.4)
Rated Pressure psi (bar): 100 (7)
Pressure Range min/max psi (bar): 80/125 (5.5/8.2)
Sound Level dB(A): 76

900

Actual Delivery cfm (cubic meters per minute): 900 (25.5)
Rated Pressure psi (bar): 100 (7)
Pressure Range min/max psi (bar): 80/125 (5.5/8.2)
Sound Level dB(A): 76

900H

Actual Delivery cfm (cubic meters per minute): 900 (25.5)
Rated Pressure psi (bar): 150 (10.3)
Pressure Range min/max psi (bar): 80/150 (5.5/10.3)
Sound Level dB(A): 76

1050

Actual Delivery cfm (cubic meters per minute): 1050 (29.7)
Rated Pressure psi (bar): 125 (8.2)
Pressure Range min/max psi (bar): 80/125 (5.5/8.2)
Sound Level dB(A): 76

ENGINE

Make & Model (Emissions Level): Caterpillar C9 (T3)
Cylinders: 6
Bore & Stroke in (mm): 4.41 x 5.87 (112 x 149)
Rated Power hp (kW): 300 (224)
Rated Speed rpm: 1800
Displacement cubic inches (l): 538 (8.8)

DTQ PACKAGE - TANDEM AXLE: Electric Brakes, Mechanical Parking Brake, E-Z Lube Axle

Working Weight lbs (kg): 10,050 (4559)
Dry Weight lbs (kg): 9210 (4178)
Length in (mm): 189 (4801)
Width in (mm): 87 (2210)
Height in (mm): 88 (2235)
Track Width in (mm): 77 (1956)
Tire Size (load range): ST 235/80 R16

DWQ PACKAGE: 4-Wheel, Mechanical Parking

Working Weight lbs (kg): 10,200 (4627)
Dry Weight lbs (kg): 9360 (4246)
Length in (mm): 203 (5156)
Width in (mm): 90 (2286)
Height in (mm): 94 (2388)
Track Width in (mm): 80.8 (2052)
Tire Size (load range): ST 235/80 R16

DLQ PACKAGE: Less Running Gear

Working Weight lbs (kg): 9075 (4116)
Dry Weight lbs (kg): 8235 (3735)
Length in (mm): 131 (3327)
Width in (mm): 87 (2210)
Height in (mm): 77 (1956)"}
