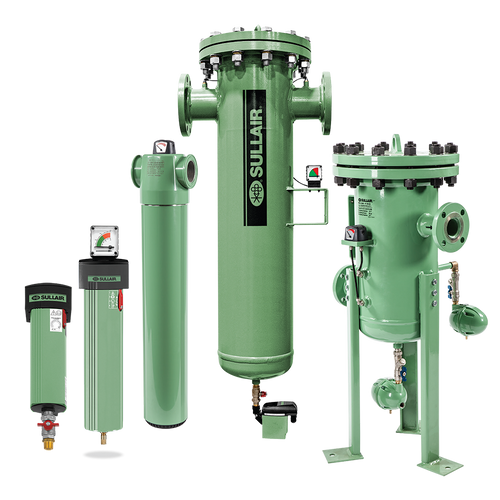

Filtration and Mist Elimination #filtration_elimination_sullair

{"sku":"SKU|filtration_elimination_sullair","model":"Model|Filtration Elimination","feature_bullet_1":"Feature 1|Flow: 25 - 21,000 cfm, .71 - 594.7 cubic meters per minute","feature_bullet_2":"Feature 2|Pressure: 232 - 725 psi, 16 - 50 bar","feature_bullet_3":"Feature 3|Sullair filters are built for reliable operation and designed to help you save money.","feature_bullet_4":"Feature 4|Engineered for energy efficiency - helps reduce operating costs","feature_bullet_5":"Feature 5|Broad filtration from general purpose to highly stringent applications","product_brochure_url":"Product Brochure PDF URL|https://america.sullair.com/sites/default/files/2020-01/LIT_Sullair%20Filtration%20Brochure_SAPATSX201907-2_EN.pdf","spec_notab_clustered_specs":"Specifications|

SX Series Threaded Filters

Coalescing, Particulate & Activated Carbon
Flow Rates scfm: 25 - 1900
Max Operating Pressure psig: 232
Max Operating Temperature  degrees F: 140
Standard Connection: 3/8 inch - 3 inch NPT
Housing Material: Anodized, Powder-Coated Aluminum

Drains

Coalescing: Float drain
SULLIMAX Zero Loss Drain optional
Particulate & Activated Carbon: Manual drain

FH Threaded Filters

High Pressure
Flow Rates scfm: 60 - 1750
Max Operating Pressure psig: 725
Max Operating Temperature  degrees F: 176
Standard Connection: 1/4 inch - 2 1/2 inch NPT
Housing Material: Aluminum
Drains: Manual drain

FXFRHT Threaded Filters

Particulate High Temperature
Flow Rates scfm: 25 - 1600
Max Operating Pressure psig: 290
Max Operating Temperature  degrees F: 350
Standard Connection: 1/2 inch - 3 inch NPT
Housing Material: Diecast Aluminum
Drains: Manual drain

SX Series Flange Filters

Coalescing, Particulate & Activated Carbon
Flow Rates scfm: 1900 - 21,000
Max Operating Pressure psig: 232
Max Operating Temperature  degrees F: 140
Standard Connection: 4 inch - 12 inch ANSI Flange
Housing Material: Powder-Coated Carbon Steel

Drains

Coalescing & Particulate: SULLIMAX Zero Air Loss Drain
Activated Carbon: Manual drain

FWFRHT Series Flange Filters

Particulate High Temperature
Flow Rates scfm: 1500 - 17,700
Max Operating Pressure psig: 290
Max Operating Temperature  degrees F: 350
Standard Connection: 3 inch - 14 inch ANSI Flange
Housing Material: Steel
Drains: External Float Drain"}
