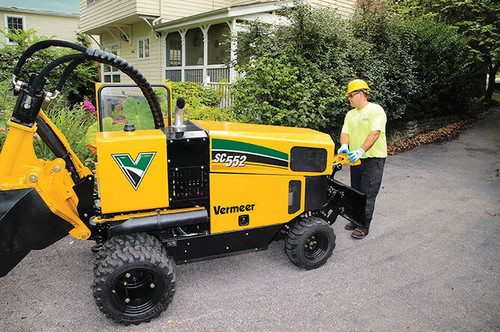

The Vermeer SC552 stump cutter is designed to maneuver through tough jobsite conditions. A unique four-bar linkage allows the cutter wheel to move away from the machine as the boom drops down toward the stump, reducing the need to reposition the entire unit. This machine can achieve cutting heights of 31 in (78.7 cm) above ground and 25 in (63.5 cm) below grade. The four wheel drive and variable speed control gives the SC552 traction in difficult ground conditions and, an optional remote provides propel, boom and steering function control. Chips can be easily moved on the jobsite with the standard 34 in (86.4 cm) wide front-mounted chip blade.
{"sku":"SKU|vermeer_126296","model":"Model|SC552","video_youtube":"YouTube URL|https://youtu.be/HvXwqs3jPzw","feature_bullet_1":"Feature 1|Designed for enhanced cutting","spec_ver_chassis__10_axle_suspension":"Axle/Suspension|Steerable axle type","spec_ver_electrical_system__30_battery":"Battery|950 CCA","spec_ver_chassis__180_frame_description":"Frame Description|Welded tube and plate steel","spec_ver_electrical_system__70_controller":"Controller|Vermeer ACS","spec_ver_engine_option_one__290_fuel_type":"Fuel Type|Diesel","spec_ver_engine_option_one__30_alternator":"Alternator|100 amp","spec_ver_other_options__110_special_paint":"Special Paint|Optional","spec_ver_engine_option_one__10_air_cleaner":"Air Cleaner|Dry type safety element and restriction indicator","spec_ver_engine_option_one__460_oil_filter":"Oil Filter|Cartridge Style","spec_ver_hydraulic_system__470_system_type":"System Type|2 closed loops and 1 open","spec_ver_hydraulic_system__480_tank_capacity":"Tank capacity|17 gal","spec_ver_other_options__40_extended_warranty":"Extended Warranty|2 years/ 2000 hours or 3 years/3000 hours","spec_ver_electrical_system__200_system_voltage":"System Voltage|12 Volt","spec_ver_engine_option_one__140_cooling_medium":"Cooling Medium|Liquid","spec_ver_engine_option_one__350_make_and_model":"Make and Model|Kohler KDI 1903","spec_ver_electrical_system__160_shutdown_system":"Shutdown System|High coolant temperature, low oil pressure and high hydraulic oil temperature","spec_ver_engine_option_one__520_recommended_oil":"Recommended Oil|SAE 10W30 Low SAPS - ACEA E6-E9","spec_ver_hydraulic_system__200_filtration_method":"Filtration Method|Suction strainers, one charge pump filter and one 3 micron return filter","spec_ver_other_options__70_preventive_maintenance":"Preventive Maintenance|Optional","spec_ver_engine_option_one__280_fuel_tank_capacity":"Fuel Tank Capacity|14.5 gal","spec_ver_general_dimensions_and_weights__1050_width":"Width|35 in","spec_ver_general_dimensions_and_weights__130_height":"Height|76.5 in","spec_ver_engine_option_one__390_max_fuel_consumption":"Max Fuel Consumption|2.4 gph","spec_ver_engine_option_one__470_oil_volume_with_filter":"Oil Volume with Filter|9.4 qt","spec_ver_engine_option_one__310_gross_horsepower_maximum":"Gross Horsepower (Maximum)|56 hp","spec_ver_general_dimensions_and_weights__780_weight_engine_option_one":"Weight - Engine Option One|4000 lbs","spec_ver_engine_option_one__450_number_of_cylinders":"Number of Cylinders|3","spec_ver_chassis__40_brake_type":"Brake Type|Spring applied, hydraulic release at planetary drives and hydrostatic braking (closed loop)","spec_ver_electrical_system__180_switches":"Switches|Two-speed ground drive, blade, steering, differential propel lock, SmartSweep settings, cutterwheel engage/disengage, creep, propel system joystick and boom controls joystick","spec_ver_chassis__460_toolbox_description":"Toolbox Description|Standard","spec_ver_hydraulic_system__350_oil_cooler":"Oil Cooler|Standard","spec_ver_engine_option_one__120_clutch_type":"Clutch Type|Hydrostatic Transmission","spec_ver_hydraulic_system__180_directional_control":"Directional Control|Electric over hydraulic","spec_ver_electrical_system__140_radio_remote_control":"Radio Remote Control|Functions include: propel forward/reverse; boom up/down, boom left/right, steering left/right, blade up/down, SmartSweep settings, travel speed high/low, differential lock, throttle","spec_ver_engine_option_one__130_coolant_capacity_engine_and_radiator":"Coolant Capacity (Engine and Radiator)|1.7 gal","spec_ver_chassis__430_tires_standard":"Tires - Standard|Rear:Duals, 23x8.5-14","spec_ver_chassis__630_wheels_standard":"Wheels - Standard|Rear: 14\" x 6\" (35.56 cm x 15.24 cm)","spec_ver_chassis__360_steerable_axle_type":"Steerable Axle Type|Two wheels, hydraulic","spec_ver_option_one__40_chip_blade_dimension":"Chip Blade Dimension|Standard - 34 inches wide, 13.75 inches tall","spec_ver_electrical_system__210_warning_lights":"Warning Lights|Low oil pressure, high engine temperature, alternator/charging, wait to start glow plug indicator, high and low hydraulic temp, ACS controller function lights- various functions shown on controller","spec_ver_remote_control_option__40_remote_range":"Remote Range|300'","spec_ver_chassis__90_control_station_description":"Control Station Description|Swing out control station with three available positions plus auxiliary control station","spec_ver_cutterwheel_system__10_chip_containment":"Chip Containment|28.2 cu ft","spec_ver_cutterwheel_system__110_number_of_teeth":"Number of Teeth|26","spec_ver_cutterwheel_system__50_cutterwheel_guard":"Cutterwheel Guard|Standard","spec_ver_cutterwheel_system__60_cutterwheel_speed":"Cutterwheel Speed|1124 rpm","spec_ver_option_one__10_blade_travel_above_ground":"Blade Travel Above Ground|14 in","spec_ver_remote_control_option__20_remote_display":"Remote Display|LED","spec_ver_cutterwheel_system__100_number_of_pockets":"Number of Pockets|26","spec_ver_cutterwheel_system__130_tooth_description":"Tooth Description|Yellow Jacket Cutting System","spec_ver_cutterwheel_system__120_reversible_pockets":"Reversible Pockets|Yes- standard","spec_ver_general_dimensions_and_weights__270_length":"Length|147 in","spec_ver_remote_control_option__30_remote_functions":"Remote Functions|Engine stop, throttle, cutter wheel engage, swing, raise/lower, propel, creep, smartsweep","spec_ver_cutterwheel_drive_components__50_driveshaft":"Driveshaft|Standard","spec_ver_cutterwheel_system__80_cutterwheel_thickness":"Cutterwheel Thickness|1.1 in","spec_ver_remote_control_option__10_radio_remote_control":"Radio Remote Control|Optional","spec_ver_chassis__320_operator_vision_shield_description":"Operator Vision Shield Description|Abrasion resistant coated polycarbonate, 3/16\" thick","spec_ver_cutterwheel_drive_components__110_lower_gearbox":"Lower Gearbox|90 degree","spec_ver_cutterwheel_system__20_cutterwheel_cut_above_ground":"Cutterwheel Cut Above Ground|31 in","spec_ver_cutterwheel_system__30_cutterwheel_cut_below_ground":"Cutterwheel Cut Below Ground|25 in","spec_ver_cutterwheel_drive_components__60_driveshaft_u_joints":"Driveshaft - U Joints|2 standard with double lip seals","spec_ver_cutterwheel_drive_components__170_oil_type_lower_gearbox":"Oil Type - Lower Gearbox|Syn 75W90","spec_ver_cutterwheel_system__40_cutterwheel_diameter_without_teeth":"Cutterwheel Diameter without Teeth|23 in","spec_ver_cutterwheel_system__70_cutterwheel_straight_line_dimension":"Cutterwheel Straight Line Dimension|72 in","spec_ver_cutterwheel_drive_components__150_oil_capacity_lower_gearbox":"Oil Capacity - Lower Gearbox|1.6 qt","spec_ver_option_one__30_bumper":"Bumper|.75\" (1.9 cm) plate","spec_ver_chassis__530_turning_radius":"Turning Radius|105 deg","spec_ver_chassis__100_degree_of_oscillation":"Degree of Oscillation|15 deg","spec_ver_electrical_system__90_deluxe_gauges":"Deluxe Gauges|DP05 Display - Fuel,Hour Meter, Selectible","spec_ver_operator_presence_system__10_description":"Description|Capacitive Handles - Swing/Raise & Lower","spec_ver_operator_presence_system__20_quantity_location":"Quantity/Location|2 - Swing Out Station","spec_ver_general_dimensions_and_weights__1170_width_with_dual_wheel_option_additional":"Width with Dual Wheel Option (Additional)|56 in","product_brochure_url":"Product Brochure PDF URL|https://www.vermeer.com/getmedia/176fbde3-d635-4cbb-a936-36261d48347d/sc552-stump-cutter-spec-sheet-updated-2023.pdf?ext=.pdf"}
