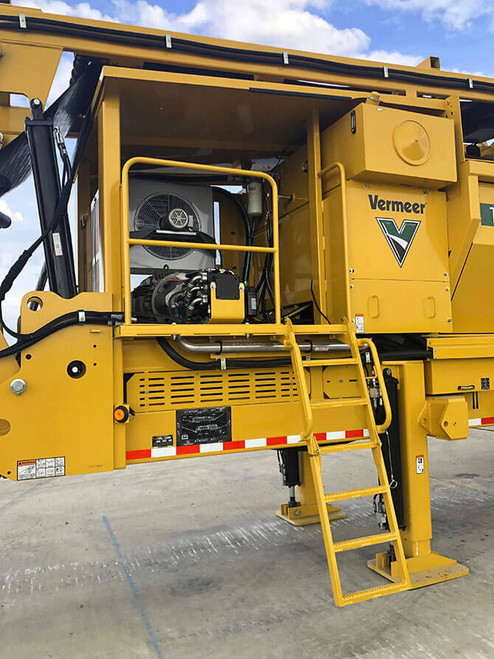

Like the TR626 trommel screen, the TR626EM trommel screen takes the Vermeer trommel screen lineup to the next level with similar design and the ability to tackle tough jobs. The Vermeer TR626EM is equipped with a 150-hp (112-kW) Siemens motor which can help reduce jobsite noise and overall machine maintenance.
{"sku":"SKU|vermeer_126522","model":"Model|TR626EM","feature_bullet_1":"Feature 1|Electrify your screening operation","spec_ver_general_dimensions_and_weights__680_transport_width":"Transport Width|113 in","spec_ver_chassis__50_capacity":"Capacity|22500 lbs","spec_ver_screen_drum__50_drum_motor":"Drum Motor|48.8 cu in (800 cu cm) displacement","spec_ver_screen_drum__70_drum_speed":"Drum Speed|0-24 rpm","spec_ver_chassis__10_axle_suspension":"Axle/Suspension|Leaf spring","spec_ver_screen_drum__40_drum_length":"Drum Length|26 ft","spec_ver_chassis__400_tires_option_one":"Tires - Option One|235-75R 17.5H qty. 4","spec_ver_screen_drum__20_drum_diameter":"Drum Diameter|6 ft","spec_ver_chassis__180_frame_description":"Frame Description|4 independent hydraulic jacklegs","spec_ver_screen_drum__60_drum_operation":"Drum Operation|0-42.6 gpm (161.3 L/min)","spec_ver_hydraulic_system__380_operation":"Operation|62.9 gpm @ 2800 psi (238.1 L/min @ 172.4 bar [17240 kPa])","spec_ver_screen_drum__30_drum_drive_chain":"Drum Drive Chain|140 WT","spec_ver_motor_option_one__30_motor_rating":"Motor rating|150 hp, 1800 rpm, 460 V, 3 phase","spec_ver_screen_brushes__30_brush_diameter":"Brush Diameter|14 in","spec_ver_collecting_conveyor__110_idler_type":"Idler Type|20 degrees CEMA \"B\" with permanently sealed bearings spaced at 24 in (20.96 cm) centers","spec_ver_fines_conveyor__120_rubber_flashing":"Rubber Flashing|Adjustable, 0.25 in (0.64 cm) thick, 4 in (10.16 cm)","spec_ver_fines_conveyor__60_fines_belt_speed":"Fines Belt Speed|405 ft/min","spec_ver_hydraulic_system__480_tank_capacity":"Tank capacity|200 gal","spec_ver_motor_option_one__20_make_and_model":"Make and Model|Siemens","spec_ver_motor_option_one__40_system_voltage":"System Voltage|460 V","spec_ver_screen_brushes__10_bristle_material":"Bristle Material|Polyethylene","spec_ver_fines_conveyor__110_head_pulley_type":"Head Pulley Type|Rubber lagged, 12 in (30.5 cm) diameter, 38 in (99.65 cm) wide","spec_ver_screen_drum__110_thrust_bearing_face":"Thrust Bearing Face|2.9 in","spec_ver_fines_conveyor__20_conveyor_belt_type":"Conveyor Belt Type|220 lb (99.8 kg), 2-ply, 2/16 in x 1/16 in (4.8 mm x 1.6 mm)","spec_ver_fines_conveyor__50_conveyor_operation":"Conveyor Operation|15.4 gpm","spec_ver_screen_drum__90_maximum_screen_panels":"Maximum Screen Panels|8","spec_ver_fines_conveyor__150_tail_pulley_takeup":"Tail Pulley Takeup|12 in","spec_ver_fines_conveyor__30_conveyor_belt_width":"Conveyor Belt Width|36 in","spec_ver_fines_conveyor__90_head_pulley_bearing":"Head Pulley Bearing|2.4 in (6.1 cm) pillow block","spec_ver_fines_conveyor__70_fines_conveyor_frame":"Fines Conveyor Frame|4 in x 8 in (10.2 cm x 20.3 cm) structural steel tubing","spec_ver_collecting_conveyor__120_rubber_flashing":"Rubber Flashing|Adjustable, 0.25 in (6.44 cm) thick, 4 in (10.2 cm)","spec_ver_collecting_conveyor__60_fines_belt_speed":"Fines Belt Speed|405 ft/min","spec_ver_fines_conveyor__160_troughing_idler_type":"Troughing Idler Type|20 degrees CEMA \"B\" with permanently sealed bearings spaced at 24 in (60.96 cm) centers","spec_ver_fines_conveyor__80_fines_conveyor_length":"Fines Conveyor Length|72.5 ft","spec_ver_screen_drum__100_thrust_bearing_diameter":"Thrust Bearing Diameter|5 in","spec_ver_screen_drum__10_drum_angle_adjustability":"Drum Angle Adjustability|0-7 degrees","spec_ver_screen_drum__80_drum_support_description":"Drum Support Description|Four steel trunnion rollers 8 in (20.3 cm) diameter, 4 in (10.2 cm) width","spec_ver_screen_brushes__20_brush_assembly_support":"Brush Assembly Support|Two 1.25-in (3.2-cm) sealed ball bearings","spec_ver_collecting_conveyor__30_conveyor_belt_type":"Conveyor Belt Type|220 lb (99.8 kg), 2-ply, 2/16 in x 1/16 in (4.8 mm x 1.6 mm)","spec_ver_general_dimensions_and_weights__740_weight":"Weight|65000 lbs","spec_ver_collecting_conveyor__140_tail_pulley_takeup":"Tail Pulley Takeup|12 in","spec_ver_collecting_conveyor__40_conveyor_belt_width":"Conveyor Belt Width|36 in","spec_ver_collecting_conveyor__90_head_pulley_bearing":"Head Pulley Bearing|2.4 in (6.1 cm) pillow block","spec_ver_fines_conveyor_option_radial__80_idler_type":"Idler Type|30 degrees CEMA \"B\" with permanently sealed bearings spaced at 41 in (104 cm) centers","spec_ver_general_dimensions_and_weights__80_capacity":"Capacity|Approximately 200 cu yd (152.9 cu m) per hour with 0.5 in (1.3 cm) screens installed and material with moisture less than 40%","spec_ver_hopper_and_apron_conveyor__90_hopper_height":"Hopper Height|9.5 ft (2.9 m) from ground level at operating incline","spec_ver_collecting_conveyor__70_fines_conveyor_frame":"Fines Conveyor Frame|Part of trailer frame","spec_ver_overs_conveyor_option_1__60_head_pulley_type":"Head Pulley Type|Rubber lagged, 12 in (30.5 cm) diameter, 51 in (99.65 cm) wide","spec_ver_overs_conveyor_option_2__60_head_pulley_type":"Head Pulley Type|Rubber lagged, 12 in (30.5 cm) diameter, 51 in (99.65 cm) wide","spec_ver_hopper_and_apron_conveyor__100_hopper_opening":"Hopper Opening|13.2 ft x 5.3 ft (4 m x 1.6 m)","spec_ver_hopper_and_apron_conveyor__80_hopper_capacity":"Hopper Capacity|6 cu yd","spec_ver_collecting_conveyor__100_head_tail_pulley_type":"Head/Tail Pulley Type|Rubber-lagged, 12 in (30.5 cm ) diameter, 38 in (99.65 cm) wide","spec_ver_fines_conveyor__40_conveyor_motor_displacement":"Conveyor Motor Displacement|38.4 cu-in","spec_ver_overs_conveyor_option_1__10_conveyor_belt_size":"Conveyor Belt Size|48 in (121.9 cm) wide with raised cleat","spec_ver_overs_conveyor_option_1__30_conveyor_belt_type":"Conveyor Belt Type|220 lb (99.8 kg), 2-ply, 2/16 in x 1/16 in (4.8 mm x 1.6 mm)","spec_ver_overs_conveyor_option_2__10_conveyor_belt_size":"Conveyor Belt Size|48 in (121.9 cm) wide with raised cleat","spec_ver_overs_conveyor_option_2__30_conveyor_belt_type":"Conveyor Belt Type|220 lb (99.8 kg), 2-ply, 2/16 in x 1/16 in (4.8 mm x 1.6 mm)","spec_ver_overs_conveyor_option_2__50_head_pulley_takeup":"Head Pulley Takeup|10 in","spec_ver_fines_conveyor__130_self_cleaning_return_idlers":"Self-Cleaning Return Idlers|11, each 4 in (10.2 cm) diameter","spec_ver_overs_conveyor_option_1__130_tail_pulley_takeup":"Tail Pulley Takeup|12 in","spec_ver_overs_conveyor_option_1__40_head_pulley_bearing":"Head Pulley Bearing|2.4 in (6.1 cm) pillow block","spec_ver_overs_conveyor_option_2__40_head_pulley_bearing":"Head Pulley Bearing|2.4 in (6.1 cm) pillow block","spec_ver_fines_conveyor__10_conveyor_belt_stacking_height":"Conveyor Belt Stacking Height|16.6 ft (5.1 m) with drum at 4 deg","spec_ver_fines_conveyor_option_radial__90_rubber_flashing":"Rubber Flashing|Adjustable, 0.25 in (6.4 mm) thick, 4 in (10.2 cm)","spec_ver_general_dimensions_and_weights__240_hitch_weight":"Hitch Weight|30000 lbs","spec_ver_overs_conveyor_option_1__80_overs_conveyor_frame":"Overs Conveyor Frame|4 in x 8 in (10.2 cm x 20.3 cm) structural steel tubing","spec_ver_overs_conveyor_option_2__80_overs_conveyor_frame":"Overs Conveyor Frame|2 in x 8 in (5.1 cm x 20.3 cm) structural steel tubing","spec_ver_fines_conveyor_option_radial__30_fines_belt_speed":"Fines Belt Speed|705 ft/min","spec_ver_hopper_and_apron_conveyor__60_apron_opening_width":"Apron Opening Width|43 in","spec_ver_hopper_and_apron_conveyor__70_hopper_bottom_width":"Hopper Bottom Width|48 in","spec_ver_overs_conveyor_option_1__90_overs_conveyor_length":"Overs Conveyor Length|20 ft","spec_ver_overs_conveyor_option_2__90_overs_conveyor_length":"Overs Conveyor Length|28 ft","spec_ver_hopper_and_apron_conveyor__40_apron_conveyor_speed":"Apron Conveyor Speed|0-35 fpm (0-10.7 m/min)","spec_ver_hopper_and_apron_conveyor__50_apron_opening_height":"Apron Opening Height|34 in","spec_ver_collecting_conveyor__50_conveyor_motor_displacement":"Conveyor Motor Displacement|38.4 cu-in","spec_ver_fines_conveyor_option_radial__10_conveyor_belt_type":"Conveyor Belt Type|150 lb (99.8 kg), 2-ply, 1/32 in x 1/32 in (0.8 mm x 0.8 mm), vulcanized","spec_ver_general_dimensions_and_weights__510_operation_width":"Operation Width|113 in","spec_ver_hopper_and_apron_conveyor__20_apron_conveyor_length":"Apron Conveyor Length|16 ft","spec_ver_collecting_conveyor__130_self_cleaning_return_idlers":"Self-Cleaning Return Idlers|6, each 4 in (10.2 cm) diameter","spec_ver_fines_conveyor_option_radial__60_head_pulley_bearing":"Head Pulley Bearing|1.94 in (4.9 cm) pillow block","spec_ver_general_dimensions_and_weights__490_operation_height":"Operation Height|15.9 ft","spec_ver_general_dimensions_and_weights__500_operation_length":"Operation Length|84.4 ft","spec_ver_general_dimensions_and_weights__660_transport_height":"Transport Height|13.5 ft","spec_ver_general_dimensions_and_weights__670_transport_length":"Transport Length|54.5 ft","spec_ver_hopper_and_apron_conveyor__30_apron_conveyor_rollers":"Apron Conveyor Rollers|4 in (10.2 cm) diameter qty. 14","spec_ver_overs_conveyor_option_1__120_solid_return_idler_size":"Solid Return Idler Size|4-in diameter","spec_ver_fines_conveyor_option_radial__40_fines_conveyor_frame":"Fines Conveyor Frame|2 in x 8 in (5.1 cm x 20.3 cm) structural steel building","spec_ver_fines_conveyor_option_radial__50_fines_conveyor_length":"Fines Conveyor Length|30.5 ft","spec_ver_fines_conveyor_option_radial__70_head_tail_pulley_type":"Head/Tail Pulley Type|Rubber lagged, crowned, 9.75 in (24.8 cm) diameter, 32 in (81.3 cm) wide","spec_ver_hopper_and_apron_conveyor__10_apron_conveyor_belt_width":"Apron Conveyor Belt Width|48 in","spec_ver_fines_conveyor__140_self_cleaning_tail_pulley_dimensions":"Self-Cleaning Tail Pulley Dimensions|10 in (25.4 cm) diameter, 38 in (96.5 cm) wide with 2.4 in (6.1 cm) shaft","spec_ver_overs_conveyor_option_1__20_conveyor_belt_stacking_height":"Conveyor Belt Stacking Height|3 ft (0.9 m) x 10 ft (3.1 m)","spec_ver_overs_conveyor_option_2__20_conveyor_belt_stacking_height":"Conveyor Belt Stacking Height|3 ft (0.9 m) x 12.5 ft (3.8 m)","spec_ver_overs_conveyor_option_2__110_rubber_disc_return_idler_size":"Rubber disc return idler size|4 in diameter","spec_ver_fines_conveyor_option_radial__20_conveyor_motor_displacement":"Conveyor Motor Displacement|21.4 cu-in","spec_ver_fines_conveyor_option_radial__100_self_cleaning_return_idlers":"Self-Cleaning Return Idlers|4, each 4 in (10.2 cm) diameter","spec_ver_overs_conveyor_option_1__70_maximum_variable_overs_belt_speed":"Maximum Variable Overs Belt Speed|290 ft/min","spec_ver_overs_conveyor_option_2__100_rattler_roller_return_idler_size":"Rattler roller return idler size|5.4 in diameter","spec_ver_overs_conveyor_option_2__70_maximum_variable_overs_belt_speed":"Maximum Variable Overs Belt Speed|290 ft/min","spec_ver_overs_conveyor_option_1__110_self_cleaning_tail_pulley_dimensions":"Self-Cleaning Tail Pulley Dimensions|10 in (25.4 cm) diameter, 51 in (129.5 cm) wide with 2.4 in (6.1 cm) shaft","spec_ver_overs_conveyor_option_2__120_self_cleaning_tail_pulley_dimensions":"Self-Cleaning Tail Pulley Dimensions|10 in (25.4 cm) diameter, 51 in (129.5 cm) wide with 2.4 in (6.1 cm) shaft","product_brochure_url":"Product Brochure PDF URL|https://www.vermeer.com/getmedia/19420500-4dd5-4792-870f-431757fec552/tr626em-trommel-screen-spec-sheet?ext=.pdf"}
