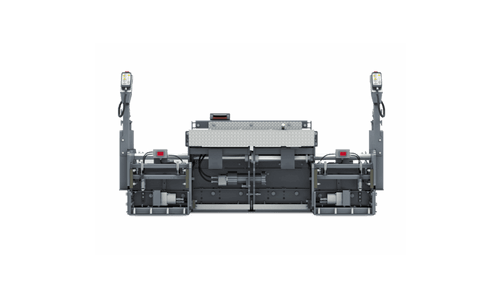

Maximum precision and high precompaction values in the Mini Class. Designed for our small pavers, the high-precision AB 220 Extending Screed delivers a high degree of precompaction. It is available in two screed versions.
The AB 220 V (with vibrators) has been specially designed for use with the SUPER 700i. The AB 220 TV (with tamper and vibrators) combines with the SUPER 800i.
{"sku":"SKU|AB_220","model":"Model|AB 220","product_brochure_url":"Product Brochure PDF URL|https://www.wirtgen-group.com/binary/full/o19929v89_Screeds_2020_US_2904183_mPW_0820.pdf","spec_notab_clustered_specs":"Specifications|
Hydraulically adjustable: 3 ft 11 in to 7 ft 3 in
Maximum paving width: 11 ft 6 in
Cut-off shoes: 1 ft 8 in - 3 ft 11 in
Length:
Minimum paving width: 1 ft 8 in
Crown adjustment: -2 % to 4 %
Vibrators (V): eccentric vibrators
Vibrators (V) Frequency (max.): 50 Hz
Tamper (T) Speed (max.): 1,800 rpm
Tamper (T) Stroke (TV): 0.16 in
Heating rods: on screed plates and in tamper bars
Depth (in transport position):
Weight of basic screed:
"}
Paving widths
Basic width: 3 ft 11 inHydraulically adjustable: 3 ft 11 in to 7 ft 3 in
Maximum paving width: 11 ft 6 in
Cut-off shoes: 1 ft 8 in - 3 ft 11 in
Length:
| Extra bolt-on extensions | Bolt-on extensions |
| (V, TV) | 10 in |
| (V, TV) | 20 in |
| (TV) | 26 in |
Profile settings
Version: mechanicalCrown adjustment: -2 % to 4 %
Compacting systems
Compacting systems: V, TVVibrators (V): eccentric vibrators
Vibrators (V) Frequency (max.): 50 Hz
Tamper (T) Speed (max.): 1,800 rpm
Tamper (T) Stroke (TV): 0.16 in
Screed heating
Output generation: three-phase AC generatorHeating rods: on screed plates and in tamper bars
Dimensions and weights
Width (with end gate): 4 ft 7 inDepth (in transport position):
| Screed | Depth |
| AB 220 | 2 ft 6 in |
| Screed | Weight |
| AB 220 V | 1,590 lbs |
| AB 220 TV | 1,810 lbs |
