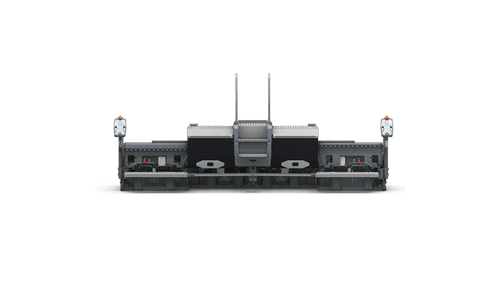

The extending screed with a wide range of applications in the Universal Class and the Highway Class. The AB 600 extending screed has a basic width of 3 meters (9.85 ft). Equipped with the robust single-tube telescoping system, its paving width is infinitely variable up to 6 meters (19.7 ft). With the addition of bolt-on extensions, even strips as wide as 9.5 meters (31.2 ft) can be paved without joints. As a result, the screed is ideal for use with the Dash 3 pavers of the Universal Class and the Highway Class.
In addition to the screed versions TV, TP1 and TP2, the TP2 Plus variant is also available for the AB 600 extending screed to achieve particularly high precompaction.
{"sku":"SKU|AB_600","model":"Model|AB 600","product_brochure_url":"Product Brochure PDF URL|https://www.wirtgen-group.com/binary/full/o19929v89_Screeds_2020_US_2904183_mPW_0820.pdf","spec_notab_clustered_specs":"Specifications|
Hydraulically adjustable: 9 ft 10 in to 19 ft 8 in
Maximum paving width: 31 ft 2 in
Length:
Minimum paving width: 9 ft 10 in
Crown adjustment: -2.5 % to 5 %
Slope, extending units (max.): 2 %
Height adjustment, extending units: -1 in to 1 in
Vibrators (V): eccentric vibrators
Vibrators (V) Frequency (max.): 50 Hz
Tamper (T) Speed (max.): 1,800 rpm
Tamper (T) Stroke (TV): 0.16 in
Tamper (T) Stroke (TP1, TP2): 0.08 in, 0.16 in, 0.28 in
Tamper (T) Stroke (TP2 Plus): 0.16 in, 0.28 in, 0.35 in
Pressure bars (P) Pressure bar drive (P): pulsed hydraulic
Pressure bars (P) Pressure bar pulse frequency (P) (max.): 68 Hz
Pressure bars (P) Hydraulic oil pressure (max.): 1,740 psi
Heating rods: on screed plates and in tamper bars and pressure bars
Optional screed heating: function monitoring of each individual heating rod
Control: fully automatic, thermostat-controlled
Depth (in transport position):
Weight of basic screed:
"}
Paving widths
Basic width: 9 ft 10 inHydraulically adjustable: 9 ft 10 in to 19 ft 8 in
Maximum paving width: 31 ft 2 in
Length:
| Bolt-on extensions |
| 10 in |
| 30 in |
| 49 in |
Profile settings
Version: hydraulicCrown adjustment: -2.5 % to 5 %
Slope, extending units (max.): 2 %
Height adjustment, extending units: -1 in to 1 in
Compacting systems
Compacting systems: TV, TP1, TP2, TP2 PlusVibrators (V): eccentric vibrators
Vibrators (V) Frequency (max.): 50 Hz
Tamper (T) Speed (max.): 1,800 rpm
Tamper (T) Stroke (TV): 0.16 in
Tamper (T) Stroke (TP1, TP2): 0.08 in, 0.16 in, 0.28 in
Tamper (T) Stroke (TP2 Plus): 0.16 in, 0.28 in, 0.35 in
Pressure bars (P) Pressure bar drive (P): pulsed hydraulic
Pressure bars (P) Pressure bar pulse frequency (P) (max.): 68 Hz
Pressure bars (P) Hydraulic oil pressure (max.): 1,740 psi
Screed heating
Output generation: three-phase AC generatorHeating rods: on screed plates and in tamper bars and pressure bars
Optional screed heating: function monitoring of each individual heating rod
Control: fully automatic, thermostat-controlled
Dimensions and weights
Width (without end gate): 9 ft 10 inDepth (in transport position):
| Screed | Depth |
| AB 600 TV | 4 ft 2 in |
| AB 600 TP | 4 ft 8 in |
| Screed | Weight |
| AB 600 TV | 8,050 lbs |
| AB 600 TP1 | 8,820 lbs |
| AB 600 TP2 | 9,590 lbs |
| AB 600 TP2 Plus | 10,470 lbs |
