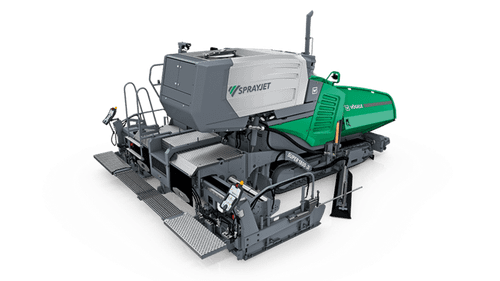

SUPER 1800-3i SprayJet Tracked Paver Special Class #SUPER_1800-3i_SprayJet

{"sku":"SKU|SUPER_1800-3i_SprayJet","model":"Model|SUPER 1800-3i SprayJet","product_brochure_url":"Product Brochure PDF URL|https://www.wirtgen-group.com/binary/full/o19554v89_SUPER_18003i_SprayJet_EN_StageV_2869917_mPW_0820.pdf","spec_notab_clustered_specs":"Specifications|

Drive

Engine Version: liquid-cooled 6-cylinder diesel engine
Engine Manufacturer: Cummins
Engine Type: B6.7 - C173
Engine Nominal output: 173 hp / 2000 RPM
Engine ECO mode output: 173 hp / 1700 rpm
Engine Exhaust emissions standard: European exhaust emissions standard V, US standard EPA Tier 4f
Engine Exhaust emissions after-treatment: DOC, DPF, SCR
Emission data Sound power level: 108 dB
Emission data Daily noise exposure level: 80 dB

Undercarriage

Undercarriage Version: provided with rubber pads
Undercarriage Ground contact: 2830 mm x 305 mm
Undercarriage Track tension adjuster: spring assembly
Undercarriage Lubrication of track rollers: lifetime
Undercarriage Traction drive crawler tracks: electronically controlled separate hydraulic drive provided for each crawler track
Speeds Travel speed (up to): 2.8 mph
Speeds Paving speed (up to): 79 fpm

Material hopper

Push-rollers Standard: oscillating
Push-rollers Positions: can be adjusted in a forward direction by 3 in

Conveyors and augers

Conveyors: 2
Conveyors Version: with replaceable feeder bars, direction of conveyor temporarily reversible
Conveyors Drive: separate hydraulic drives, proportional control
Augers: 2
Augers Version: with replaceable auger blades, reversible direction of rotation
Augers Speed: 84 rpm
Augers Drive: separate hydraulic drives, proportional control
Augers Height: infinitely variable
Augers Standard height: hydraulically adjustable by 6 in
Lubrication: centralized lubrication system, electrically-driven grease pump

SprayJet module

Emulsion tank: insulated hopper walls
Screed heating: electric, thermostat-controlled
Spray bars Number of spray bars: 5
Spray bars Spray width: 8 ft 4 in to19 ft 8 in
of which pivoting spray bars: 2
Spray nozzles Number of spray nozzles: 24
Spray nozzles Rate of spread: 0.06 lbs/sq.ft to 0.33 lbs/sq.ft
Spray nozzles Spray cone: 120 °
Spray nozzles Spray pressure (up to): 43.6 psi
Capacity Optionally with extra tank: 1,876 Imp.gal
Capacity Standard: 555 Imp.gal

Screed

Screed heating: electric, thermostat-controlled
Power supply: three-phase AC generator
Screed:

Type	Basic width	Maximum width (TV, TP1)	Maximum width	Compacting systems
AB 500	8 ft 4 in	19 ft 8 in		TV, TP1
AB 600	9 ft 10 in	19 ft 8 in		TV, TP1
VR 600	10 ft		19 ft 8 in	V

Dimensions and weights

Spray bars Spray width: 8 ft 4 in to19 ft 8 in
Operating weight:

Screed	Total weight
AB 500 TV	49,360 lbs
AB 500 TP1	50,130 lbs
AB 600 TV	50,290 lbs
AB 600 TP1	51,060 lbs

Length:

Screed	Total length
AB 500/AB 600 TV	19 ft 10 in
AB 500/AB 600 TP	20 ft 3 in

Maximum laydown rate: 770 US t/hr"}
