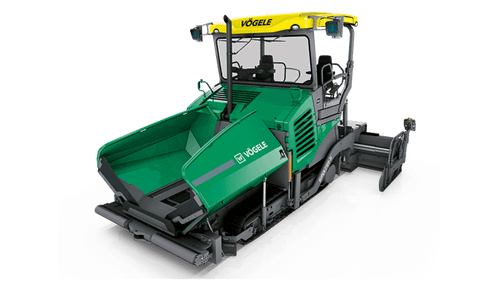

SUPER 2100-3i Tracked Paver Highway Class #SUPER_2100-3i

{"sku":"SKU|SUPER_2100-3i","model":"Model|SUPER 2100-3i","product_brochure_url":"Product Brochure PDF URL|https://www.wirtgen-group.com/binary/full/o19366v89_SUPER_21003i_EN_StageV_2865494_mPW_0520.pdf","spec_notab_clustered_specs":"Specifications|

Drive

Engine Version: liquid-cooled 6-cylinder diesel engine
Engine Manufacturer: Cummins
Engine Type: B6.7 - C250
Engine Nominal output: 250 hp / 2000 RPM
Engine ECO mode output: 250 hp / 1700 rpm
Engine Exhaust emissions standard: European exhaust emissions standard V, US standard EPA Tier 4f
Engine Exhaust emissions after-treatment: DOC, DPF, SCR
Emission data Sound power level: 108 dB
Emission data Daily noise exposure level: 80 dB

Undercarriage

Undercarriage Version: provided with rubber pads
Undercarriage Ground contact: 3060 mm x 305 mm
Undercarriage Track tension adjuster: spring assembly
Undercarriage Traction drive crawler tracks: electronically controlled separate hydraulic drive provided for each crawler track
Lubrication of track rollers: lifetime
Speeds Travel speed (up to): 2.8 mph
Speeds Paving speed (up to): 79 fpm

Material hopper

Push-rollers Standard: oscillating
Push-rollers Positions: can be adjusted in a forward direction by 3 or 6 in
Push-rollers Option: sprung (PaveDock)

Conveyors and augers

Conveyors: 2
Conveyors Version: with replaceable feeder bars, direction of conveyor temporarily reversible
Conveyors Drive: separate hydraulic drives, proportional control
Augers: 2
Augers Version: with replaceable auger blades, reversible direction of rotation
Augers Speed: 80 rpm
Augers Drive: separate hydraulic drives, proportional control
Augers Height: infinitely variable
Augers Standard height: hydraulically adjustable by 6 in
Lubrication: centralized lubrication system, electrically-driven grease pump

Screed

Screed heating: electric, thermostat-controlled
Power supply: three-phase AC generator
Screed:

Type	Basic width	Maximum width (TV, TP1)	Compacting systems
AB 500	8 ft 4 in	27 ft 11 in	TV, TP1, TP2, TP2 Plus
AB 600	9 ft 10 in	31 ft 2 in	TV, TP1, TP2, TP2 Plus
SB 300	9 ft 10 in	42 ft 8 in	TV, TP1, TP2
SB 300 HD	9 ft 10 in	32 ft 10 in	TV

Dimensions and weights

Operating weight:

Screed	Total weight
AB 500 TV	48,390 lbs
AB 500 TP1	49,160 lbs
AB 500 TP2	49,820 lbs
AB 500 TP2 Plus	50,600 lbs
AB 600 TV	49,380 lbs
AB 600 TP1	50,160 lbs
AB 600 TP2	50,930 lbs
AB 600 TP2 Plus	51,810 lbs
SB 300 TV	46,300 lbs
SB 300 TP1	46,630 lbs
SB 300 TP2	46,960 lbs
SB 300 HD TV	46,410 lbs

Length:

Screed	Total length
AB 500/AB 600 TV	21 ft 11 in
AB 500/AB 600 TP	22 ft 4 in
SB 300	22 ft 1 in

Maximum laydown rate: 1,210 US t/hr"}
