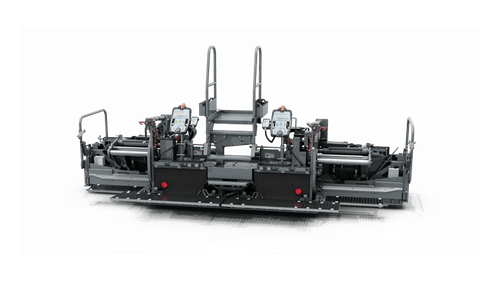

VÖGELE extending screed with front-mounted extensions. The VF 500 Extending Screed has been specially developed for the SUPER 1700-3i and SUPER 1703-3i pavers of the Universal Class. The VF 500 is ideal for applications which require a variable paving width, such as parking lots with islands and light masts, roads for residents only, urban roads with manhole covers, gas or water connections, junctions on highways or work on country roads, i.e. jobs which involve paving around obstacles.
{"sku":"SKU|VF_500","model":"Model|VF 500","product_brochure_url":"Product Brochure PDF URL|https://www.wirtgen-group.com/binary/full/o19929v89_Screeds_2020_US_2904183_mPW_0820.pdf","spec_notab_clustered_specs":"Specifications|
Hydraulically adjustable: 8 ft to 15 ft 7 in
Maximum paving width: 19 ft 6 in
Cut-off shoes: 4 x 1 ft
Length:
Minimum paving width: 4 ft
Crown adjustment: -2 % to 5 %
Slope, extending units (max.): 10 %
Berms: 12 in, 18 in, 24 in
Vibrators (V): eccentric vibrators
Vibrators (V) Frequency (max.): 50 Hz
Heating rods: on screed plates
Control: fully automatic, thermostat-controlled
Depth (in transport position):
Weight of basic screed:
"}
Paving widths
Basic width: 8 ftHydraulically adjustable: 8 ft to 15 ft 7 in
Maximum paving width: 19 ft 6 in
Cut-off shoes: 4 x 1 ft
Length:
| Bolt-on extensions |
| 12 in |
| 24 in |
Profile settings
Version: hydraulicCrown adjustment: -2 % to 5 %
Slope, extending units (max.): 10 %
Berms: 12 in, 18 in, 24 in
Compacting systems
Compacting systems: VVibrators (V): eccentric vibrators
Vibrators (V) Frequency (max.): 50 Hz
Screed heating
Output generation: three-phase AC generatorHeating rods: on screed plates
Control: fully automatic, thermostat-controlled
Dimensions and weights
Width (without end gate): 8 ft 6 inDepth (in transport position):
| Screed | Depth |
| VF 500 | 4 ft |
| Screed | Weight |
| VF 500 | 6,500 lbs |
