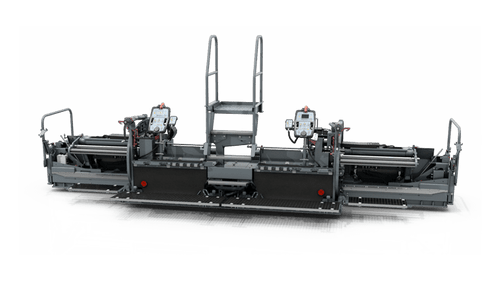

Extending screed with front-mounted extensions for 10-foot pavers. The VF 600 Extending Screed has been specially developed for the SUPER 2000-3i and SUPER 2003-3i pavers of the Highway Class, which feature high paving speeds and different paving widths. The screed‘s sturdy, smoothly sliding telescoping system guarantees precise paving across all widths. In addition, the screed is suitable for a wide range of paving profiles, including crowns and cross slopes.
{"sku":"SKU|VF_600","model":"Model|VF 600","product_brochure_url":"Product Brochure PDF URL|https://www.wirtgen-group.com/binary/full/o19929v89_Screeds_2020_US_2904183_mPW_0820.pdf","spec_notab_clustered_specs":"Specifications|
Hydraulically adjustable: 10 ft to 19 ft 6 in
Maximum paving width: 25 ft 5 in
Cut-off shoes: 4 x 1 ft
Length:
Minimum paving width: 6 ft
Crown adjustment: -2 % to 5 %
Slope, extending units (max.): 10 %
Berms: 12 in, 18 in, 24 in
Vibrators (V): eccentric vibrators
Vibrators (V) Frequency (max.): 50 Hz
Heating rods: on screed plates
Control: fully automatic, thermostat-controlled
Depth (in transport position):
Weight of basic screed:
"}
Paving widths
Basic width: 10 ftHydraulically adjustable: 10 ft to 19 ft 6 in
Maximum paving width: 25 ft 5 in
Cut-off shoes: 4 x 1 ft
Length:
| Bolt-on extensions |
| 12 in |
| 24 in |
Profile settings
Version: hydraulicCrown adjustment: -2 % to 5 %
Slope, extending units (max.): 10 %
Berms: 12 in, 18 in, 24 in
Compacting systems
Compacting systems: VVibrators (V): eccentric vibrators
Vibrators (V) Frequency (max.): 50 Hz
Screed heating
Output generation: three-phase AC generatorHeating rods: on screed plates
Control: fully automatic, thermostat-controlled
Dimensions and weights
Width (without end gate): 10 ft 6 inDepth (in transport position):
| Screed | Depth |
| VF 600 | 4 ft |
| Screed | Weight |
| VF 600 | 7,390 lbs |
