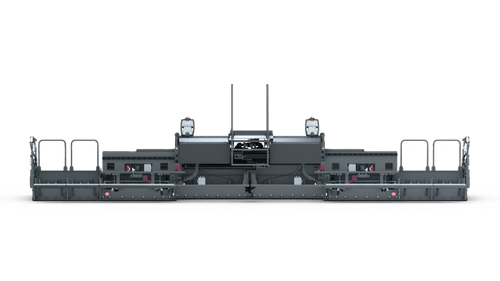

The precision extending screed for 10-foot pavers of the Highway Class. The VR 600 Extending Screed has been specially developed for Highway Class pavers and is ideally suited to the requirements of road construction in the USA and Australia. The rear-mounted VÖGELE screed is the ideal tool for paving in widths between 10 ft and 19 ft 8 in. Equipped with our proven electrical screed heating system, the VR 600 Extending Screed builds superbly even, top-quality road pavements.
{"sku":"SKU|VR_600","model":"Model|VR 600","product_brochure_url":"Product Brochure PDF URL|https://www.wirtgen-group.com/binary/full/o19929v89_Screeds_2020_US_2904183_mPW_0820.pdf","spec_notab_clustered_specs":"Specifications|
Hydraulically adjustable: 10 ft to 19 ft 8 in
Maximum paving width: 28 ft 3 in
Length:
Minimum paving width: 10 ft
Crown adjustment: -2.5 % to 5 %
Slope, extending units (max.): 10 %
Vibrators (V): eccentric vibrators
Vibrators (V) Frequency (max.): 50 Hz
Heating rods: on screed plates
Control: fully automatic, thermostat-controlled
Depth (in transport position):
Weight of basic screed:
"}
Paving widths
Basic width: 10 ftHydraulically adjustable: 10 ft to 19 ft 8 in
Maximum paving width: 28 ft 3 in
Length:
| Bolt-on extensions |
| 26 in |
Profile settings
Version: hydraulicCrown adjustment: -2.5 % to 5 %
Slope, extending units (max.): 10 %
Compacting systems
Compacting systems: VVibrators (V): eccentric vibrators
Vibrators (V) Frequency (max.): 50 Hz
Screed heating
Output generation: three-phase AC generatorHeating rods: on screed plates
Control: fully automatic, thermostat-controlled
Dimensions and weights
Width (without end gate): 10 ftDepth (in transport position):
| Screed | Depth |
| VR 600 | 5 ft |
| Screed | Weight |
| VR 600 | 8,270 lbs |
