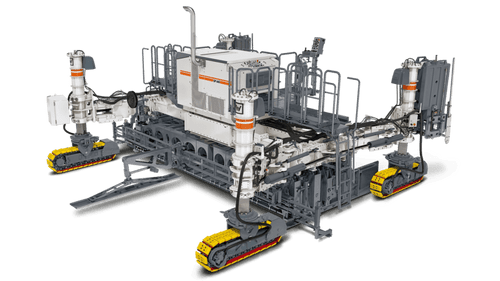

SP 64i Inset Slipform Pavers #SP_64i

{"sku":"SKU|SP_64i","model":"Model|SP 64i","feature_bullet_1":"Feature 1|Suitable for a wide range of paving jobs with the highest quality surface evenness from 6 ft to 24 ft wide and 18 in thick (cannot be combined with all options).","feature_bullet_2":"Feature 2|The particularly low ground pressure due to specially designed, longer crawler units simplifies operation under difficult operating conditions.","feature_bullet_3":"Feature 3|The fully modular machine design, simple changeover and expansion, and hydraulic swing arms make the machine highly adaptable to any job site situation.","feature_bullet_4":"Feature 4|The intelligent, electronic steering and control system ensures precise handling of the four crawler units and thus precise concrete paving.","feature_bullet_5":"Feature 5|Precise insertion of tie bars and dowels via a self-loading dowel bar inserter (optional) makes it possible to pave concrete that requires reinforcing steel.","product_brochure_url":"Product Brochure PDF URL|https://www.wirtgen-group.com/binary/full/o17583v77_W_brochure_SP61iSP64i_USA_1219_V1_US.pdf","spec_notab_clustered_specs":"Specifications|

Technical specifications

Paving width: 6 ft 6 in - 24 ft
Paving width with crown: 12 ft - 24 ft
Paving width without crown: 6 ft 6 in - 24 ft
Paving height: 0 - 18 in
Exhaust emissions category: EU Stage 4/US EPA Tier 4f
Rated power: 180 kW / 241 hp
Displacement: 369.5 Imp.gal
Number of crawler tracks: 4
Height adjustment, mechanical: 16 in
Operating weight, CE: 42,000 lbs
Paving speed: B0: 0 – 20 ft / min\nB1: 0 – 23 ft / min
Travel speed: B0: 0 – 69 ft/min B1 0 – 77 ft/min
Machine weight: 37500 - 99200 lbs"}
